Vegetable weighers

Vegetable weighers

WE series

Product description

Vegetable weighers from the WE series are used to prepare portions of a specified weight and feed them directly into a bag or a packing machine. The machines in this series are characterized by simple design and mobility.

Specification

WE-15 PLUS WE-30 IV WE-30 PLUS WE-50 PLUS
Throughput capacity
Weighing accuracy
Weighing range 2,5-15 kg 2,5-30 kg 2,5-30 kg 2,5-50 kg
Throughput capacity for 15kg portions* up to 4,0 t/h up to 4,0 t/h up to 6,0 t/h up to 3,8 t/h
Number of dosing belts 2 1 2 2
Weighing of root vegetables No ** Yes No ** No **
Compatibility with packing machines (raschel and film bagging machines) No Yes Yes No
Main belt width 300 mm 560 mm 400 mm 300 mm
Supplementary dosing belt width 100 mm - 100 mm 100 mm
Adjustable guide plate on the supplementary dosing belt for increased weighing accuracy No - Yes No
Stepless speed adjustment of the supplementary dosing belt No - Yes No
Opening/closing of the weighing hopper Electric Pneumatic Pneumatic Electric
Electrical connection 1x230 VAC (N) PE 50 Hz; 5m cable with 32A 5P 6h connector 3x400 VAC (N) PE 50 Hz; 5m cable with 32A 5P 6h connector
1,4 kW 1,1 kW 1,5 kW 1,8 kW
Pneumatic connection - 3/8’’; min. 6 Bar 3/8’’; min. 6 Bar -
- 20 NL/min 20 NL/min. -
Ambient conditions from 0 to 40 degrees Celsius

Standard equipment

Optional equipment

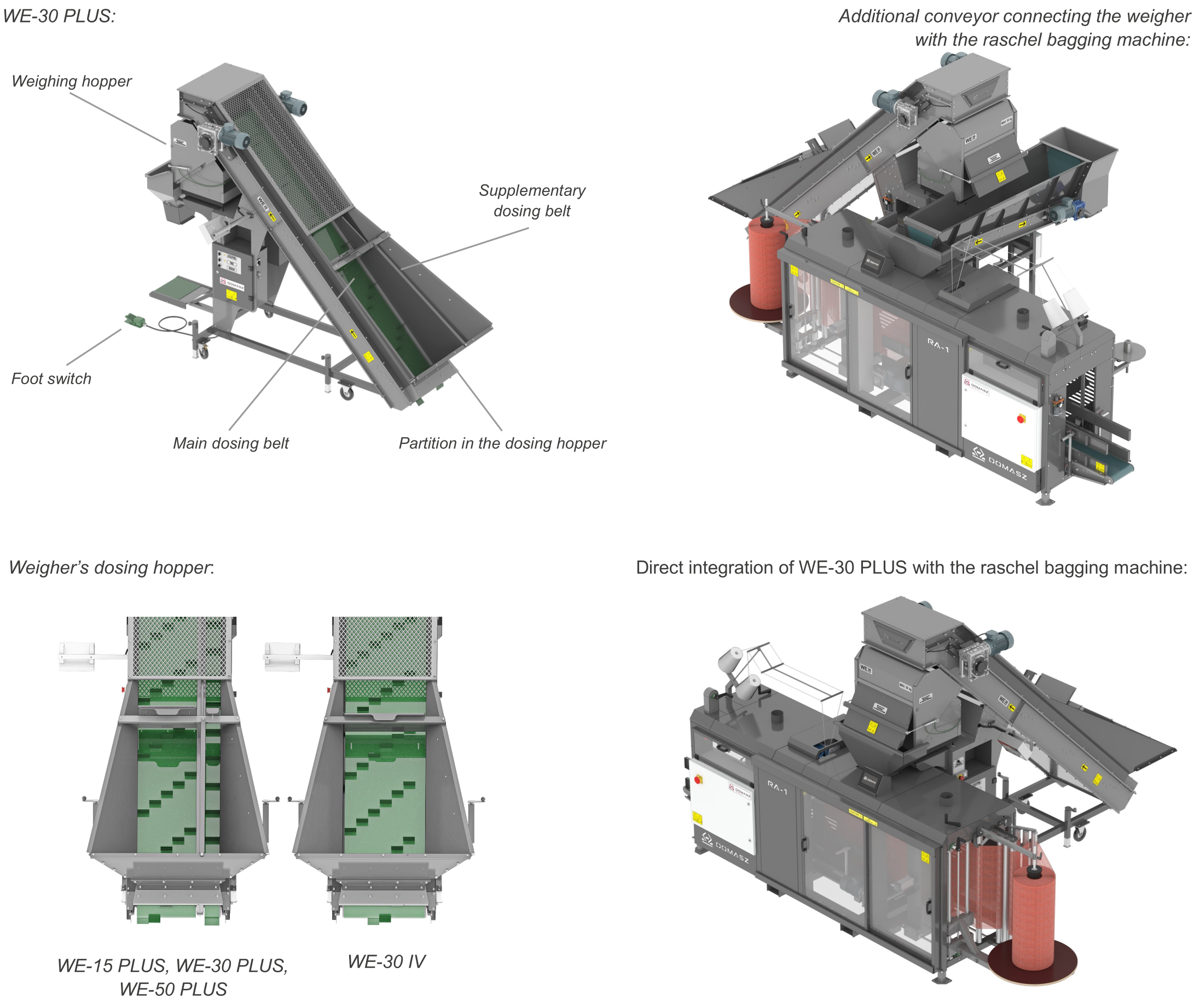

Construction

External dimensions
