Raschel bagging machine

Raschel bagging machine

RA-1

Product description

The RA-1 raschel bagging machine is an automatic packing machine designed to pack potatoes, onions, carrots, and other hard vegetables into raschel (net) bags from a roll.

Specification

RA-1
Packaging range 2,5-30 kg
Throughput capacity up to 11,7 t/h (for 15kg packages)
Maximum bag height 800 mm
Electrical connection 3x400 VAC (N) PE 50 Hz; 5m cable with 32A 5P 6h connector
3,5 kW
Pneumatic connection 3/8’’; min. 6 Bar
80 NL/min.
Ambient conditions from 0 to 40 degrees Celsius

Output capacity

Package size Output capacity in bags per minute*: Output capacity in bags per minute**:
3,0 kg 23 11
4,0 kg 22 9
5,0 kg 21 9
10,0 kg 15 8
15,0 kg 13 8
25,0 kg 10 6

Optional thermal printers

Markem-Imaje SmartDate X45
Videojet DataFlex 6330

Standard equipment

Optional equipment

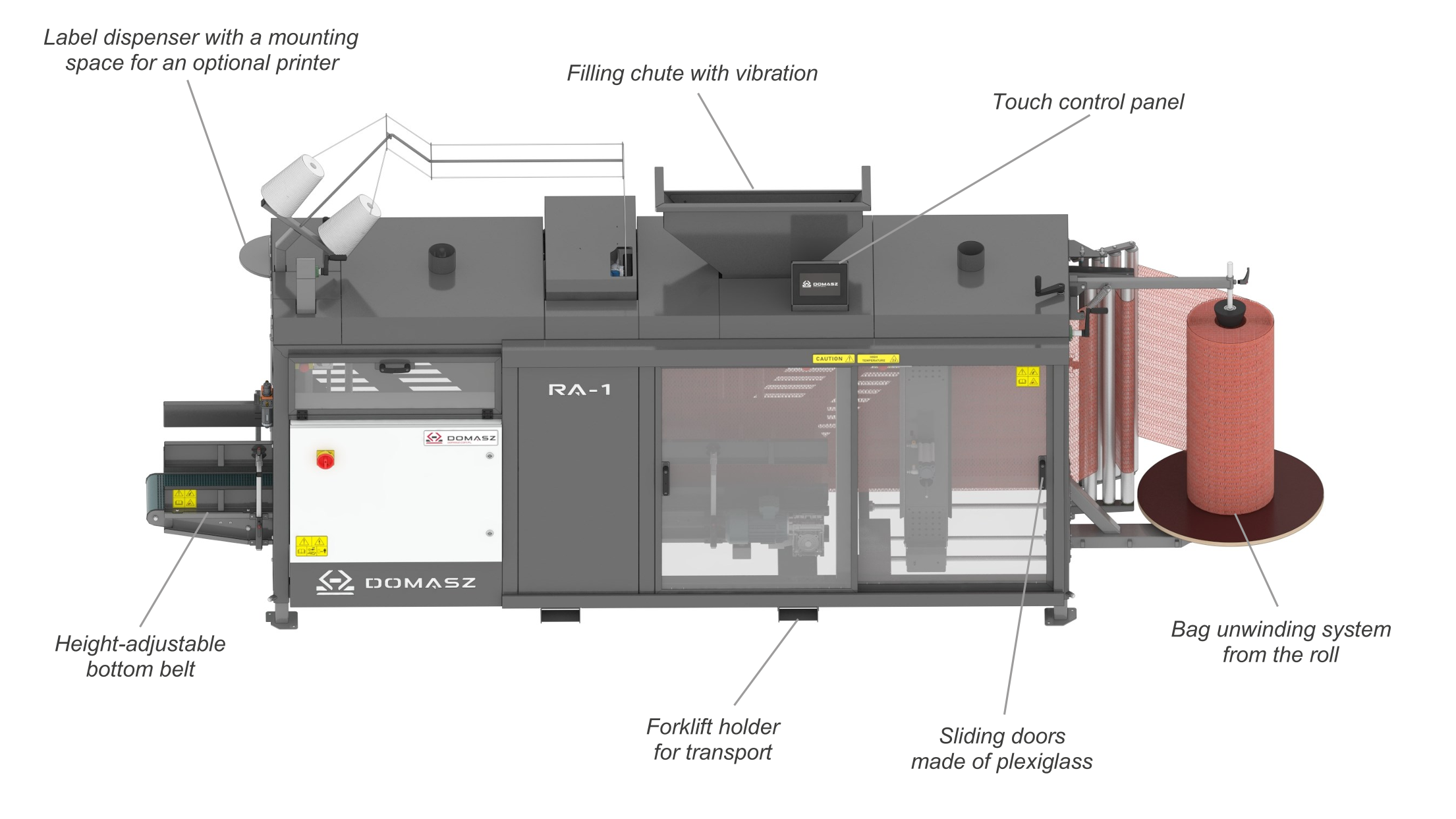

Construction

External dimensions
