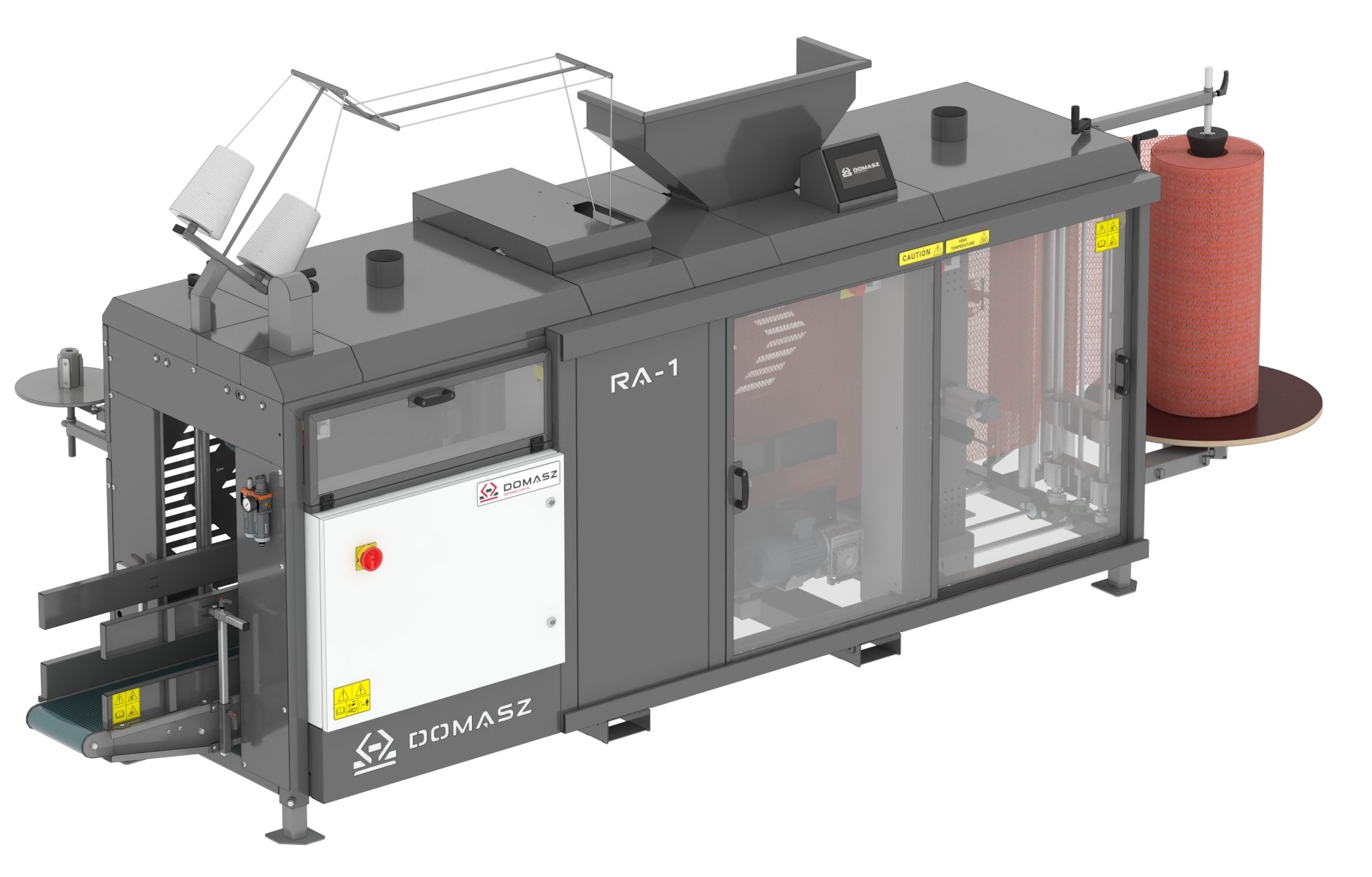

Raschel bagging machine

RA-1

Product description

The RA-1 raschel bagging machine is an automatic packing machine designed to pack potatoes, onions, carrots, and other hard vegetables into raschel (net) bags from a roll.

Specification

	RA-1
Packaging range	2,5-30 kg
Throughput capacity	up to 11,7 t/h (for 15kg packages)
Maximum bag height	800 mm
Electrical connection	3x400 VAC (N) PE 50 Hz; 5m cable with 32A 5P 6h connector
Electrical connection	3,5 kW
Pneumatic connection	3/8’’; min. 6 Bar
Pneumatic connection	80 NL/min.
Ambient conditions	from 0 to 40 degrees Celsius

Output capacity

Package size	Output capacity in bags per minute*:	Output capacity in bags per minute**:
3,0 kg	23	11
4,0 kg	22	9
5,0 kg	21	9
10,0 kg	15	8
15,0 kg	13	8
25,0 kg	10	6

Optional thermal printers

Standard equipment

Single-thread Fischbein F sewing head
7'' touch control panel with built-in statistics module
Filling chute vibration
Filling chute blockage sensor (integration with multihead weigher)
Label dispenser
Side covers
Automatic lubrication of the sewing head
Integration socket for an external control device
Construction made of shot-blasted carbon steel (DC01, S235) with a double powder coating

Optional equipment

Double-thread sewing head: Fichbein 100, Newlong DS-9Pl or YAO HAN F900A
Single-thread sewing head: Newlong NP-7A or YAO HAN F300A
Construction made of stainless steel (AISI 304) (includes belt certified for food contact)
Vibration of the bottom belt
Bag discharge can take place on the opposite side (depending on machine setup)
Automatic label printer: Markem-Imaje SmartDate X45, Videojet DataFlex 6330

Construction

External dimensions
