Rapeseed meal line

Rapeseed meal line

WE-50 DUO, PK-4

Solution description

Complete solution for preparing pallets with bags of rapeseed meal.

Rapeseed meal is delivered to the receiving hopper equipped with a discharge conveyor (1), which doses the product either to the WE-50 DUO weigher (3) or to the BIG-BAG filler BBS-2 (2). The weighed portion is dispensed into a polypropylene bag, which is then sewn shut (4) and positioned in the correct orientation (5) before being transferred to the palletizer. Before stacking, each bag is compressed and shaped (6) to ensure stability and a uniform pallet shape. The palletizer (7) arranges the bags on pallets, which are then wrapped with film (8). Finished pallets are buffered at the end of the line (9).

Solutions applied

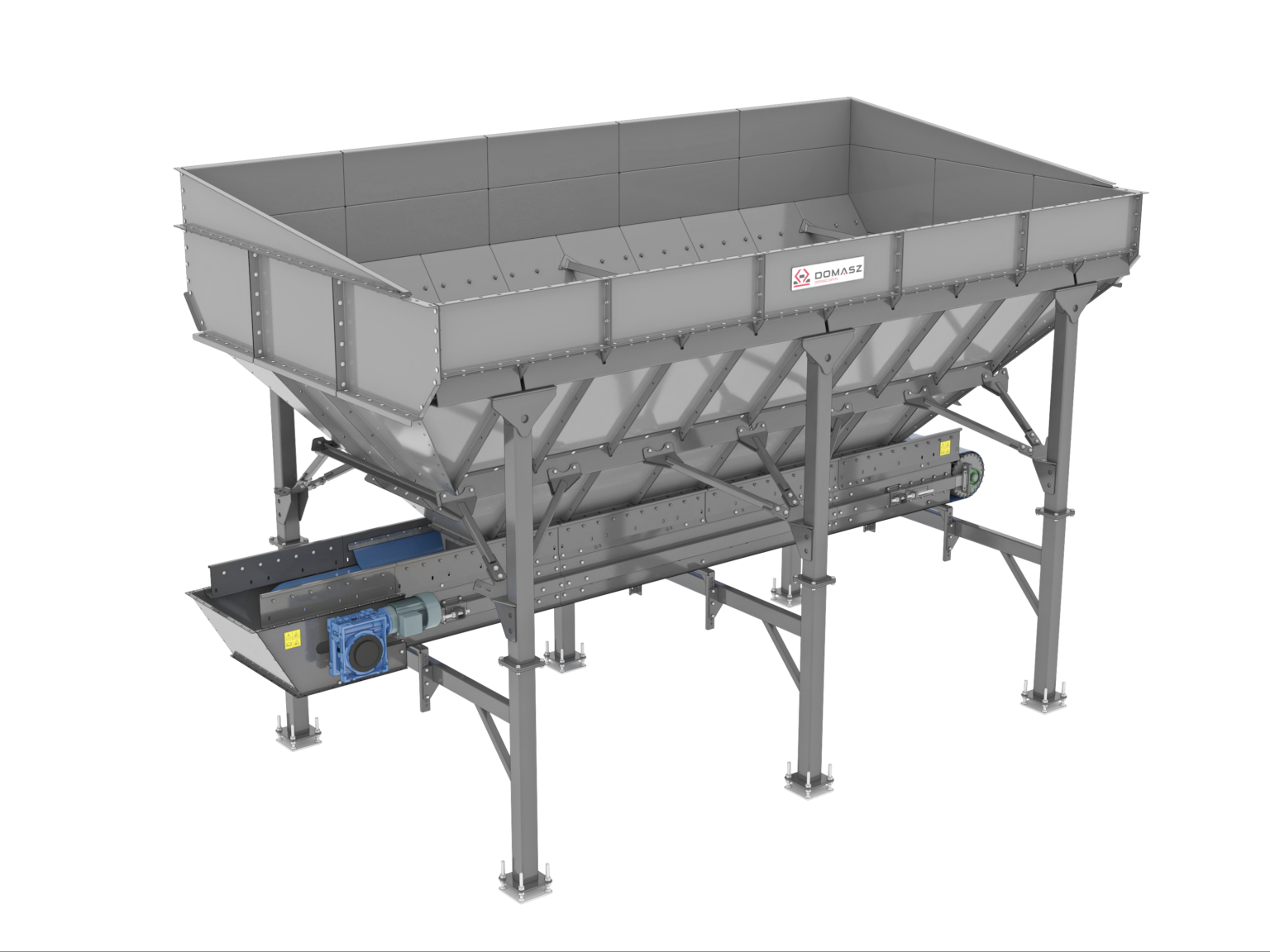

Receiving hopper KPZ 1

Receiving hoppers

Big-Bag filler BBS-2

Big-Bag fillers

Loose material weigher WE-50 DUO

Loose materials weighers

Bag sealing system ZW-1

Bag sealing systems

Cartesian palletizer PK-4

Cartesian palletizers
