Plate palletizer

Plate palletizer

PP

Product description

The plate palletizer is an advanced machine designed for the automatic stacking of crates and cartons onto pallets.

Specification

PP
Main application Vegetables
Package height min. 93 mm | max. 238 mm
Output capacity euro pallet 300x400 mm 1180 pcs / h
euro pallet 600x400 mm 760 pcs / h
industrial pallet 300x400 mm 1180 pcs / h
industrial pallet 600x400 mm 900 pcs / h
Packaging types crates, cartons
Package Dimensions 400x300 mm | 600x400 mm
Supported pallet types euro (1200x800mm), industrial (1200x1000mm)
Stacking height up to 2200 mm including the pallet
Pallet magazine capacity 13
Electrical connection 3x400 VAC (N) PE 50 Hz
9,5 kW
Pneumatic connection 3/4’’; min. 8 Bar
260 NL/min.
Ambient conditions from -5 to 40 degrees Celsius

Standard equipment

Optional equipment

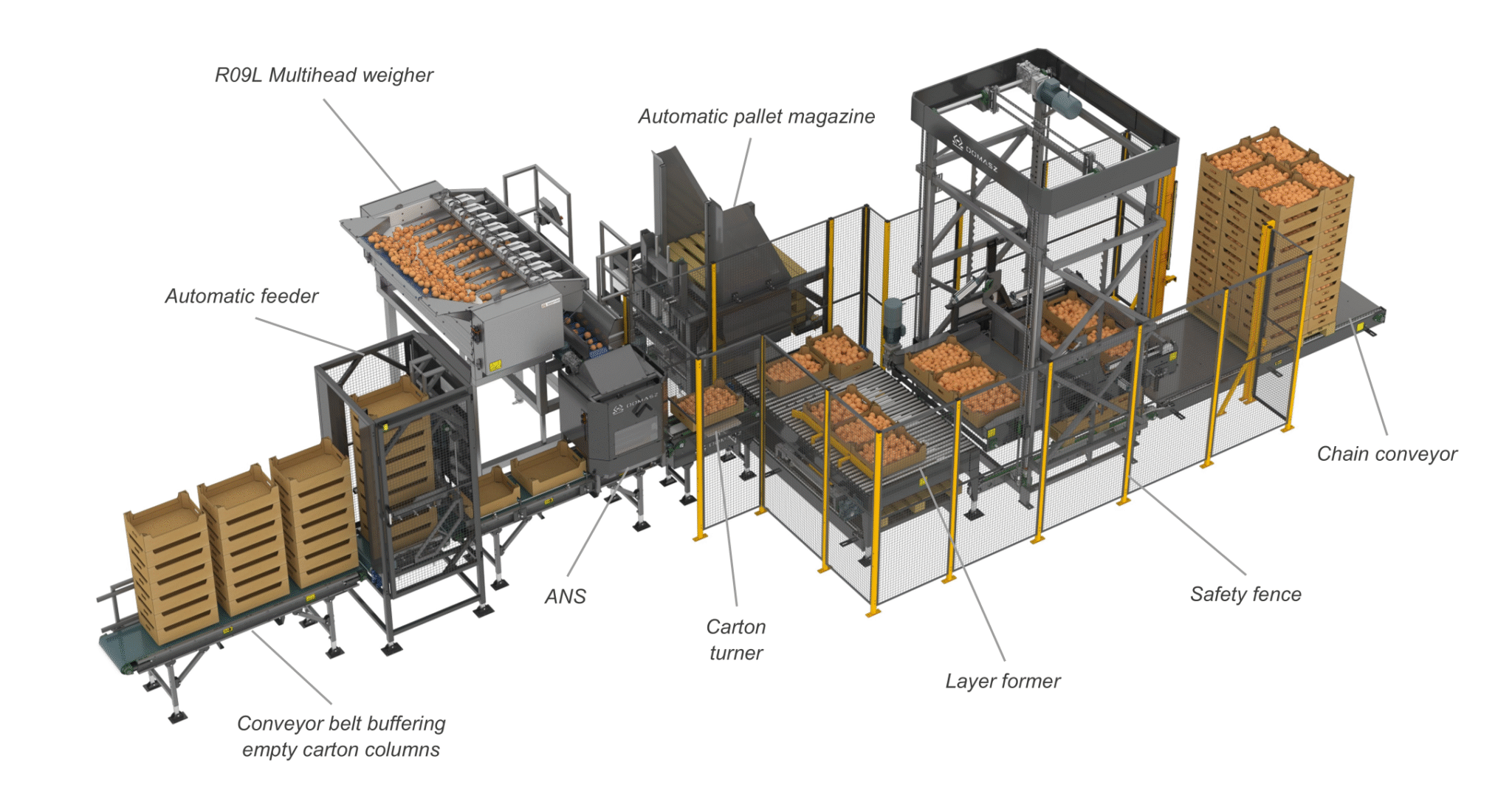

Typical base configuration of PP

External dimensions

Video materials
