Onion peeling machine

Onion peeling machine C-Line
C-Line
C-Line
C-Line
C-Line

Onion peeling machine

C-Line

Product description

Complete solution for onion peeling. C-Line is an integrated system designed for onion peeling. It consists of a device that makes precise cuts (scoring) to the outer skin and a device that removes the loosened skin using air.

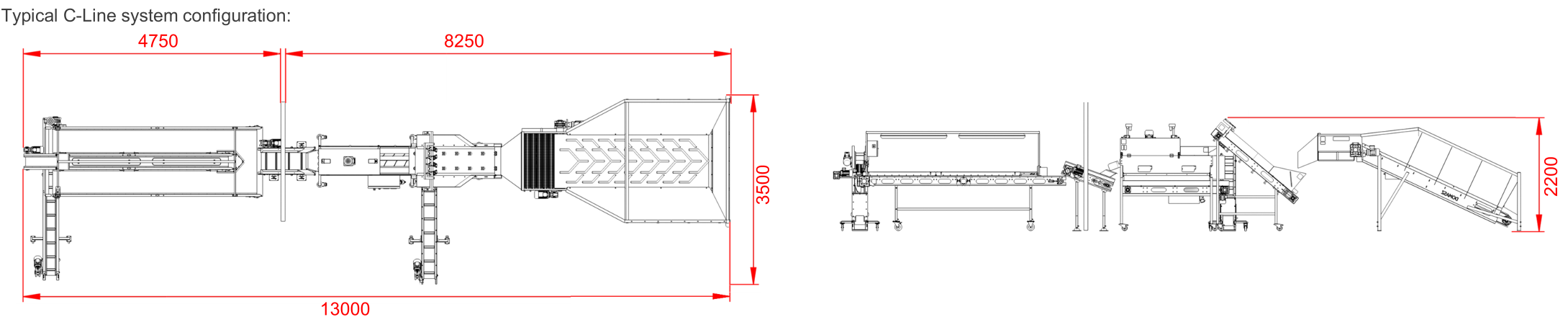

Typical C-Line system configuration for onion peeling
Typical system configuration with C-Line

Specification

C-Line
Throughput capacity * 700-1500 kg/h
Electrical connection 3x400 VAC (N) PE 50 Hz
6,8 kW
Pneumatic connection 1’’; min. 8 Bar
11 200 NL/min.
Ambient conditions from 0 to 40 degrees Celsius
  • Depending on the size and quality of the onions

Standard equipment

  • Onion scoring and skin-blowing machines (C-Line)

Optional equipment

  • Line tailored to specific requirements
  • Stationary receiving hopper
  • Waste conveyor transporting blown-off onion skin
  • Inspection table with waste and product outlet
  • Waste discharge conveyor

External dimensions

Video materials
