Film bagging machine

Film bagging machine

FA-1

Product description

The FA-1 film bagging machine is an automatic packing machine designed for packing potatoes, onions, carrots, and other hard vegetables into film bags from a roll.

Specification

FA-1
Packaging range 2,5-25 kg
Throughput capacity up to 11,7 t/h (for 15kg packages)
Maximum bag height 800 mm
Electrical connection 3x400 VAC (N) PE 50 Hz; 5m cable with 32A 5P 6h connector
3,5 kW
Pneumatic connection 3/8’’; min. 6 Bar
20 NL/min.
Ambient conditions from 0 to 40 degrees Celsius

Output capacity

Package size Output capacity in bags per minute*:
3,0 kg 23
4,0 kg 22
5,0 kg 21
10,0 kg 15
15,0 kg 13
25,0 kg 10

Standard equipment

Optional equipment

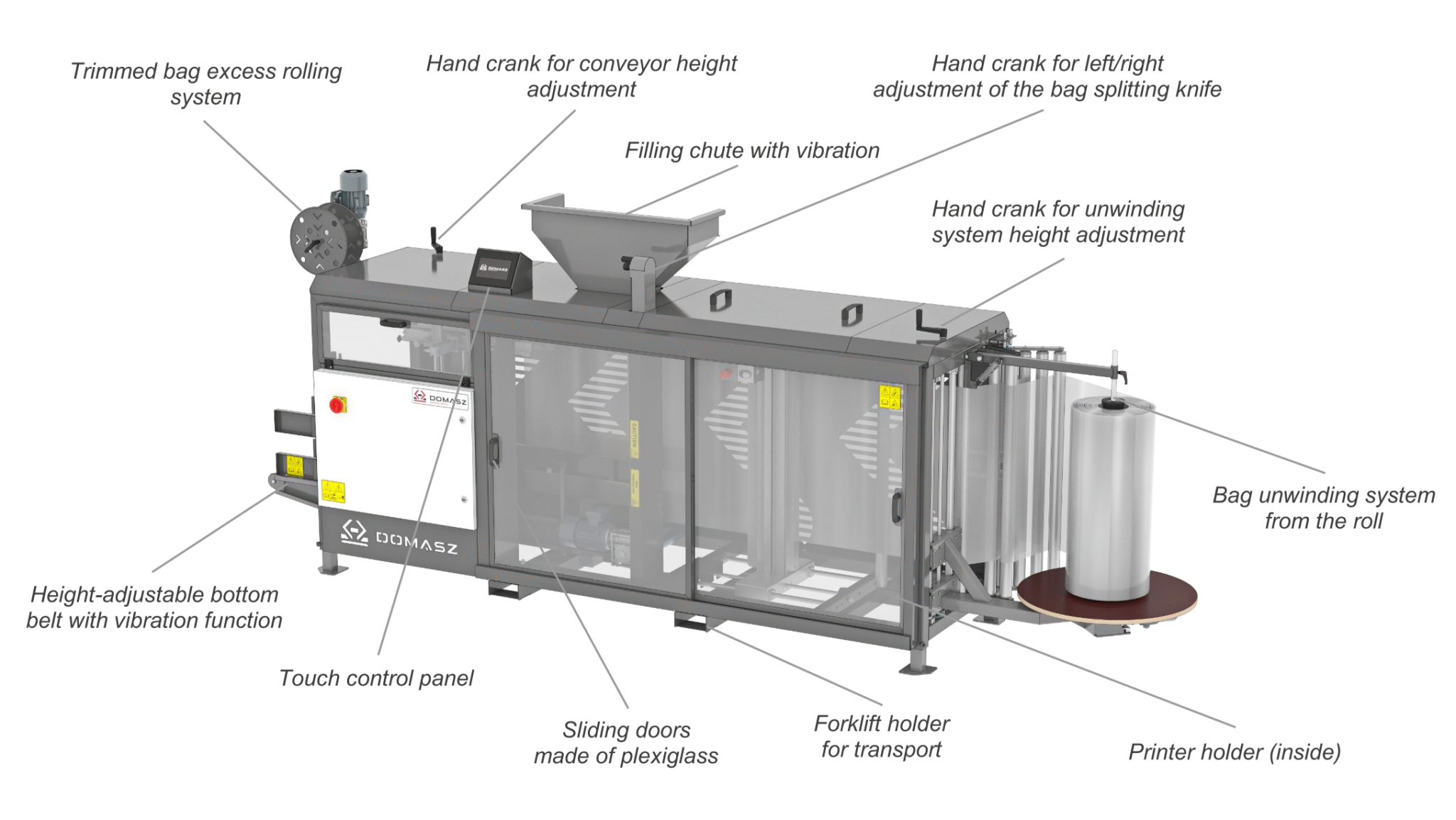

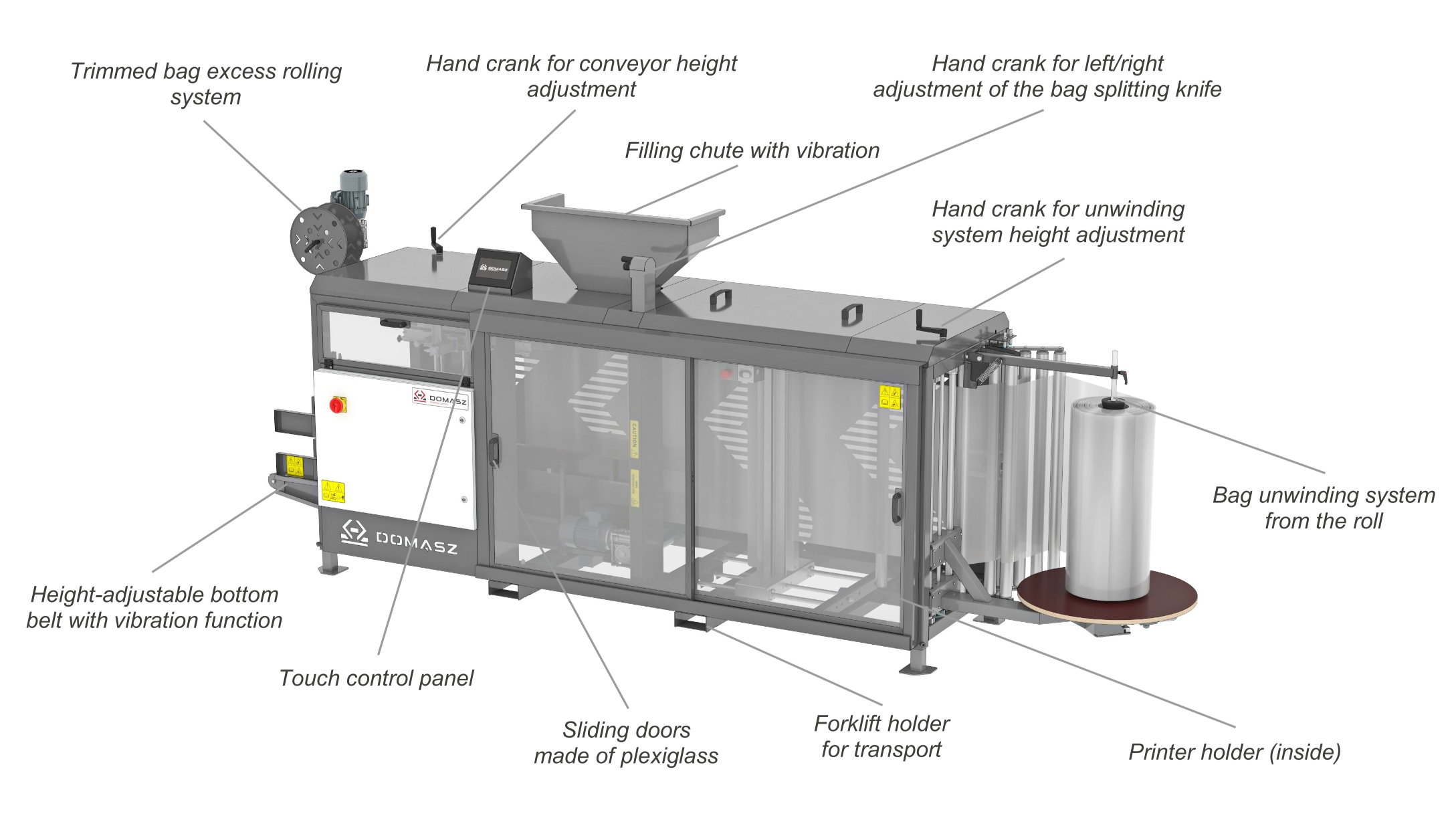

Construction

Typical FA-1 configuration

WE-30 PLUS vegetable weigher with FA-1 film bagging machine
WE-30 PLUS with FA-1
R09L Multihead weigher with FA-1 film bagging machine
R09L multihead weigher with FA-1

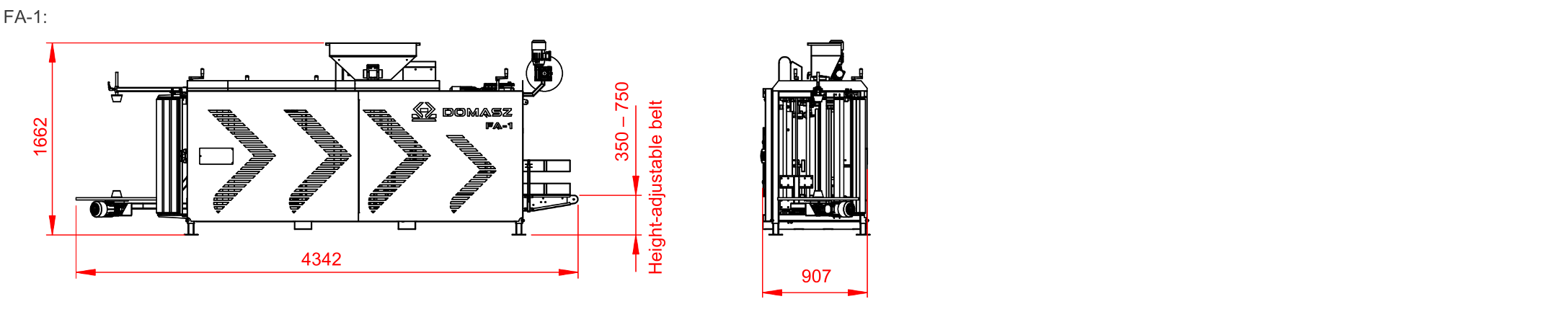

External dimensions

Video materials
