Crate and carton filler

Crate and carton filler

ANS

Product description

The ANS crate and carton filler is designed to automatically fill crates or cartons with vegetables.

Specification

ANS
Carton/crate size 600x400 mm / 400x300 mm
Minimum/maximum container height 92 mm / 238 mm
Buffer length before the filling station 1400 mm
Buffer length after the filling station 2500 mm
Output capacity up to 25 packages per minute for 5kg portions
Electrical connection 3x400 VAC (N) PE 50 Hz; 5m cable with 32A 5P 6h connector
0,37 kW
Pneumatic connection 3/8’’; min. 6 Bar
82 NL/min.
Ambient conditions from 0 to 40 degrees Celsius

Specification

APO
Maximum column height of crates or cartons 1600 mm
Electrical connection 3x400 VAC (N) PE 50 Hz; 5m cable with 32A 5P 6h connector
1,2 kW
Pneumatic connection 3/8’’; min. 6 Bar
10 NL/min.
Ambient conditions from 0 to 40 degrees Celsius

Standard equipment

Optional equipment

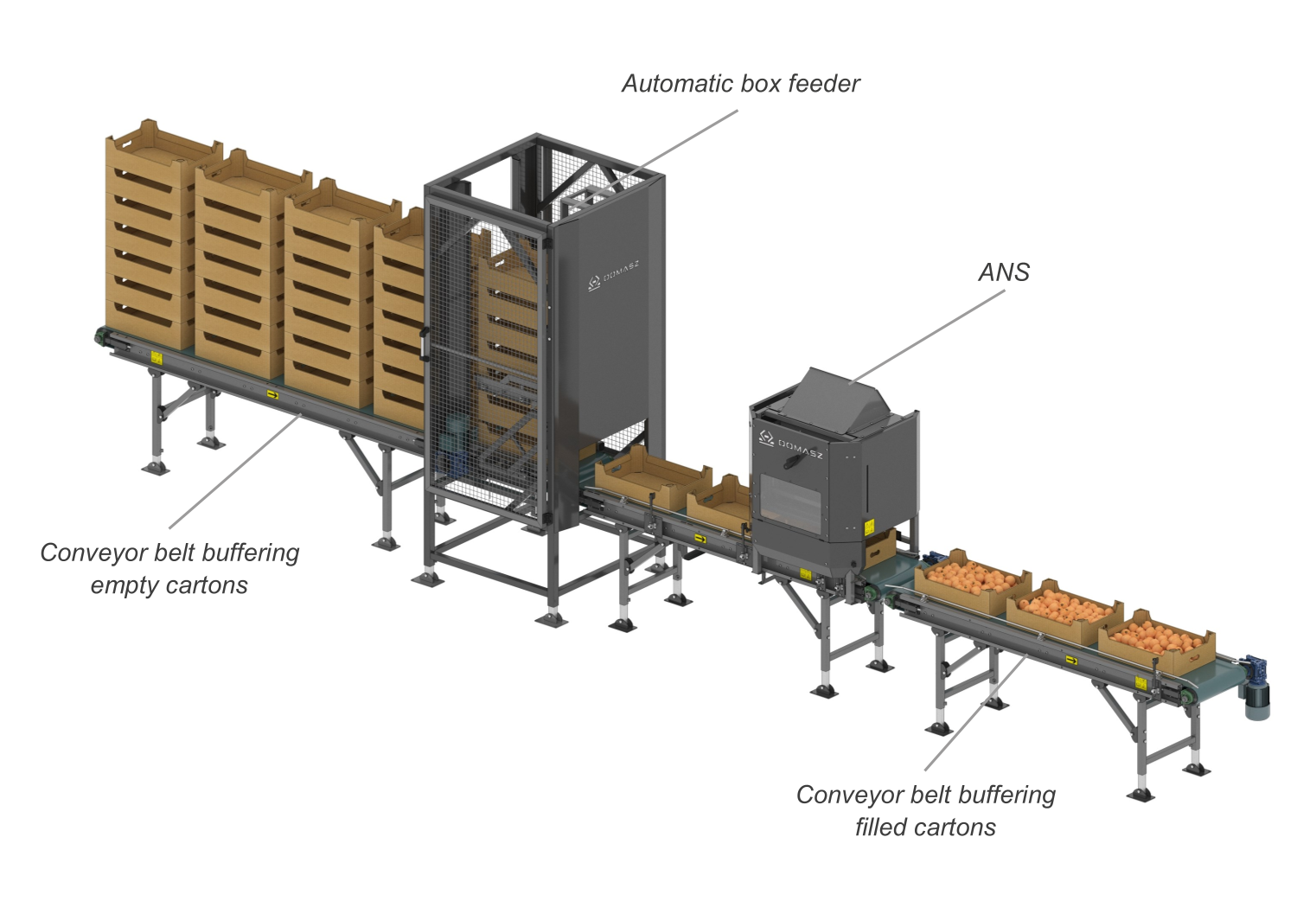

Typical base configuration of ANS

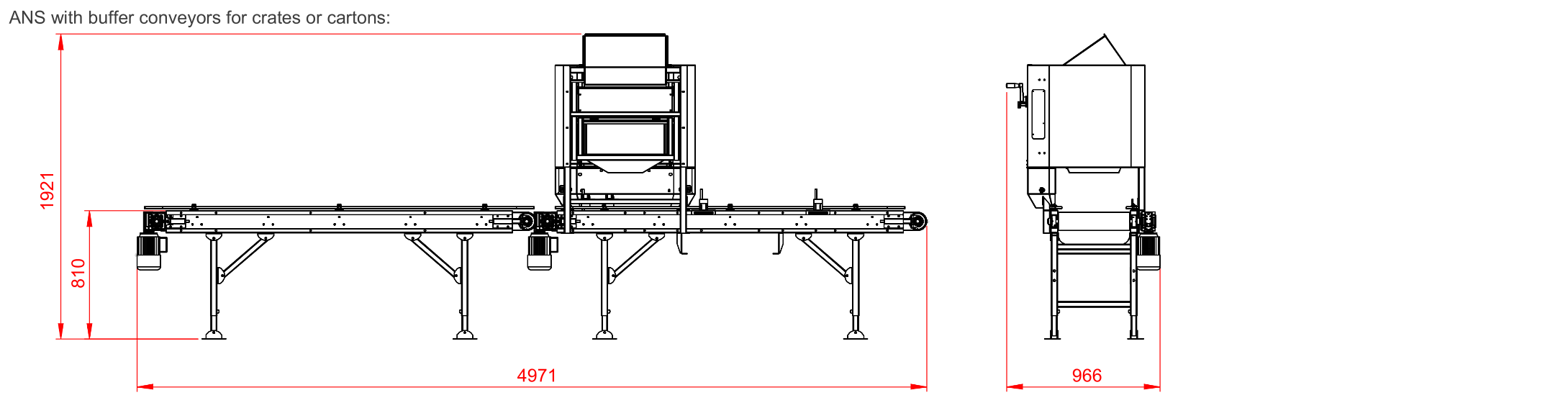

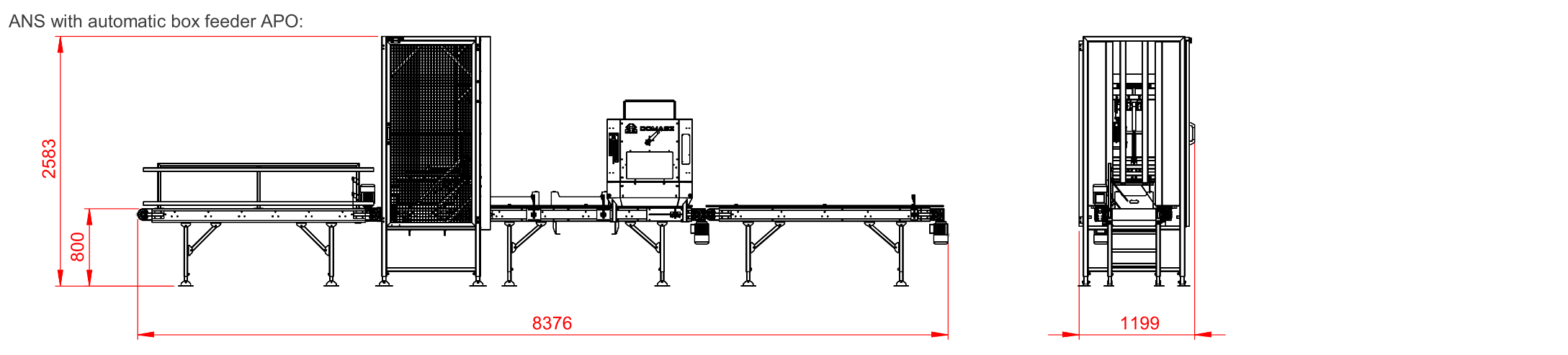

External dimensions

Video materials
